PEMF Pro Controller upgrade for Qi Mat

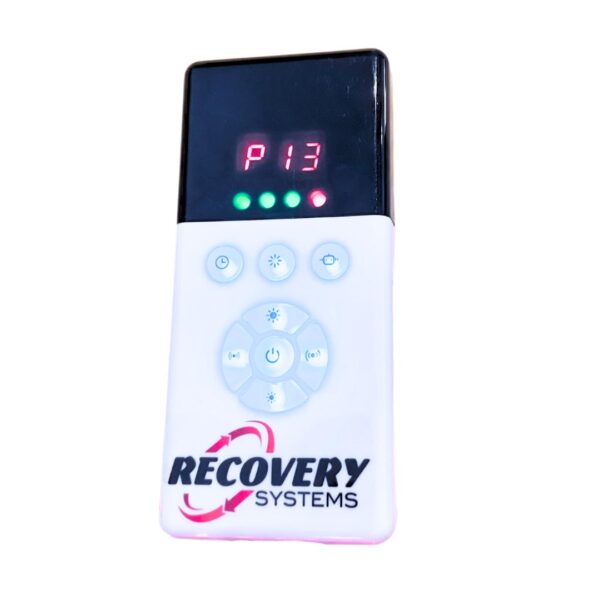

Descriptions of Controller

1. Multifunction Display Screen: Display current temperature in real-time. When setting the temperature, display the setting temperature. When selecting the heating time, display the setting time.
2. Photon Lamp: Red Lights indicate Photon is working.
3. PEMF Running Program Lamp: Light up indicates PEMF is running the program automatically.
4. Heating Lamp: When the light is on, it indicates the product is Heating. When the product reaches the setting temperature, it stops heating automatically, and the light turns off. After the temperature drops, the product continues Heating automatically, and the light turns on again.
5. PEMF Lamp: Light up indicates PEMF is working.
6. Photon Program Select Button: Turn ON/OFF Photon and select Photon running program.

• 01P = Photon ON 30 minutes
• 02P = Photon runs 8 program loops(One loop= Photon ON 30 minutes OFF 30 minutes)

7. PEMF Program Select Button: Select the PEMF running program. Refer to the appendix for details. Hold down 3 seconds to turn off PEMF under any PEMF program options.
8. Heating & Timer Button: Turn the ON/OFF heating function and set the heating time.

• 12H = Heating ON 12 hours
• 01H = Heating ON 1 hour04H = Heating ON 4 hours
• 08H = Heating ON 8 hours

9. Power Button: Turn ON/OFF the power.
10. Temperature Setting Button: The setting temperature rises one degree when pressing the button once; hold down continuously increases, and the maximum temperature is 70°(1158°Fj.
11. Temperature Setting Button: When the setting temperature drops one degree when the button is pressed once, hold down continuously falls; the lowest temperature is 30°Cj86°Fj.
12. PEMF Manual Mode Starts & Frequency Increase Button

• When the PEMF function is activated, pressing this button under any program will manually adjust the frequency mode.
• Press this button once or hold down this button to choose the Frequency.

13. PEMF Manual Mode Starts & Frequency Reduce Button

• When the PEMF function is active, pressing this button under any program will manually adjust the frequency mode.
• Press this button once or hold down this button to choose the Frequency. (Check PEMF Programs below attachment for more detail)

Qi Series Pro Controller PEMF programs

The Qi Series Pro Controller’s screen displays PEMF programs as P-, P0, P1, P2, P3, P4, P5, P6, P7, P8, P9, PA, PB, PE, and PF. Then it switches back to showing the temperature of the mat.

• P- is PEMF OFF. Press and hold the PEMF button for several seconds to terminate the active PEMF program.
• P1, P2, P3, and P9 are waking and energising programs with the gradual uprise of PEMF frequencies.
• P4, P7, and PF are relaxation programs decreasing PEMF frequencies. P8 is an all-night sleeping program.
• P5, P6, PA, and PE balance harmonious programs for daytime rest, meditation, and re-energising. They combine the relaxing descent of frequencies with activating uprise.
